The INTERNATIONAL HX Series
Purpose-built to outwork and outlast even the most punishing of job sites.
Introducing the International® HX Series. Four tough new models, each engineered to outwork and outlast, hour after demanding hour. The HX Series is designed to endure the most punishing of jobsites, and to look great while doing it. Not to mention providing its driver a spacious, comfortable environment for work, day in and day out. Built to sustain whatever comes its way, and extensively tested to move you to the head of the class.
INTERNATIONAL HX Series Specifications
HX SERIES MODELSet-forward Front Axle Truck |

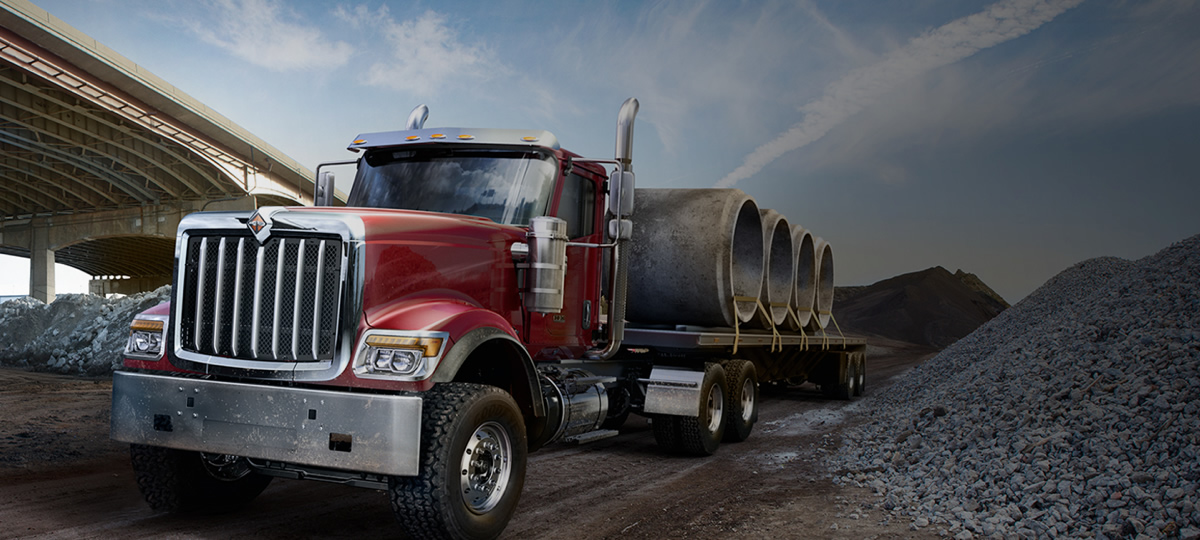

HX520Set-forward Front Axle Truck or Tractor |

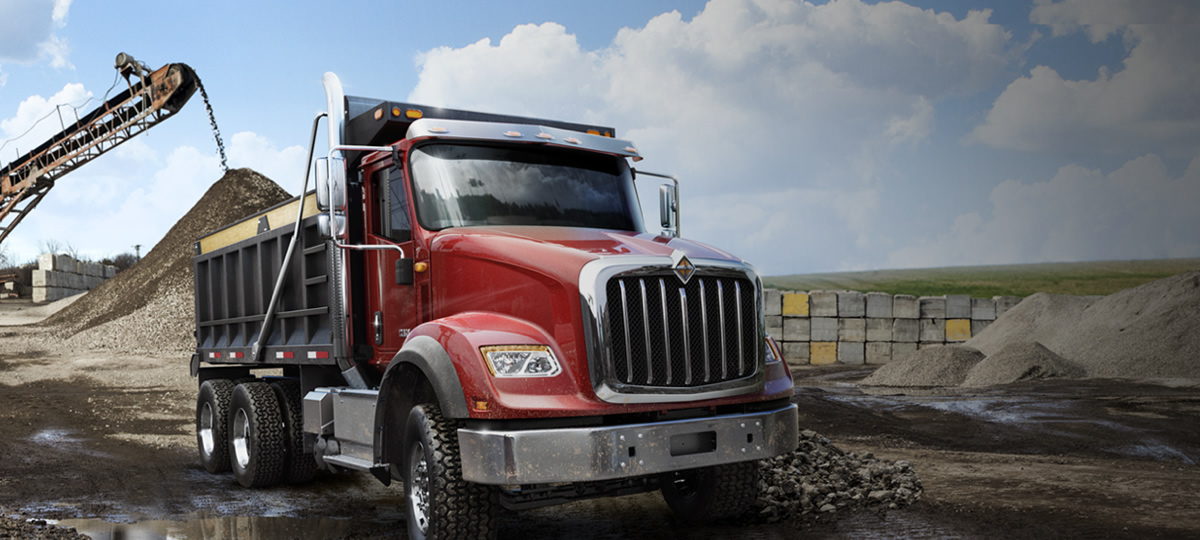

HX620Set-back Front Axle Truck or Tractor |
| HX Series Typical Usage | Heavy Haul Tractor Construction Dump Logging Recovery | Heavy Haul Tractor Construction Dump Platform Stake/Crane |
| Gross Vehicle Weight (GVW) | 52,000 – 92,000 lbs. | 52,000 – 92,000 lbs. |
| Bumper to Back of Cab (BBC) | 120″ | 119″ |
| Axle Configuration | 6X4, 8X6 | 6X4, 8X6 |
| Engine Type | Cummins X15L / International A26 | International A26 |
| Brochures | Download the HX520 spec card | Download the HX620 spec card |
INTRODUCING THE INTERNATIONAL® A26 BIG BORE ENGINE.
| Engine Type | Diesel, 4-Cycle |
| Configuration | Inline 6-Cylinder |
| Displacement | 12.4 L (758 cu. in.) |
| Bore & Stroke | 4.96 in. & 6.54 in. (126 mm & 166 mm) |
| Compression Ratio | 18.5:1 |
| Aspiration | Variable Geometry Turbocharger with Charge Air Cooler |
| Combustion System | 2500 bar High Pressure Common Rail |
| Engine Lubrication | 42 Quarts (40 L) |
| Total Engine Weight | 2,299 lbs. (1043 kg) |
| Valves | 4 Valves Per Cylinder, Single Overhead Camshaft |
| B10 Design Style | 1,200,000 mi (1,931,000) |
INTERNATIONAL S13
515 Horsepower and 1,850 LB-FT of Torque
Through exhaustive simulation work, a new cylinder and piston head design with maximum cooling properties was created. This new double overhead cam design directly equates to less fuel being consumed. But that’s not all. Thanks to the new Dual Stage Aftertreatment system, the heavy (40-50 lbs), expensive ($2,500 approx.) and finicky EGR cooler is no longer needed to reduce emissions. Its absence not only contributes to the S13 being the lightest 13-liter diesel engine available in North America, but it also means 100% of the exhaust flow goes through the new simple, more reliable fixed-vane turbo charger for maximum performance and efficiency.
CUMMINS X15
4 Cycle Inline-6 14.9L
Legendary Cummins reliability is available in new X15 Performance Series and X15 Efficiency Series configurations. The X15 Efficiency Series produces up to 500 HP with advanced fuel- saving technology that includes dynamic electronic controls with ADEPT features, enhanced engine breathing and an optimized combustion process that leverages Cummins’ proprietary VGT™ Turbo and XPI fuel system. Learn more about the Cummins X15

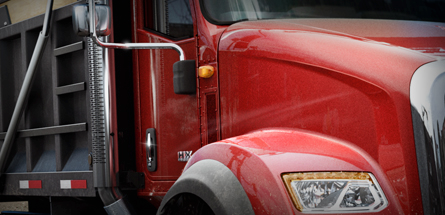

The industry’s only dedicated severe service aluminum cab offers riveted and bonded lap seams for increased strength and easier repair.

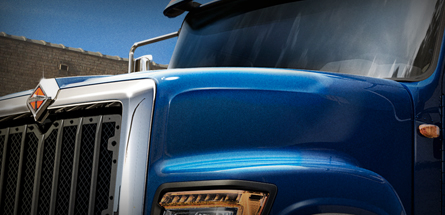

Sloped 3-Piece Metton hood designed to be stronger than fiberglass and resistant to cracking over the life of the truck.

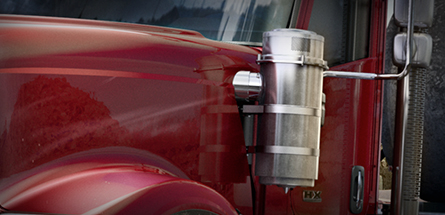

Available dual external air cleaners deliver heavy duty filtration, easy maintenance and long service life.

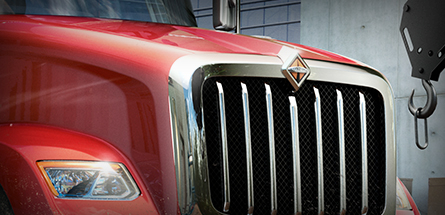

Bold, aggressive styling with all metal grille with bright surround and bright bars provide a unique, rugged look.

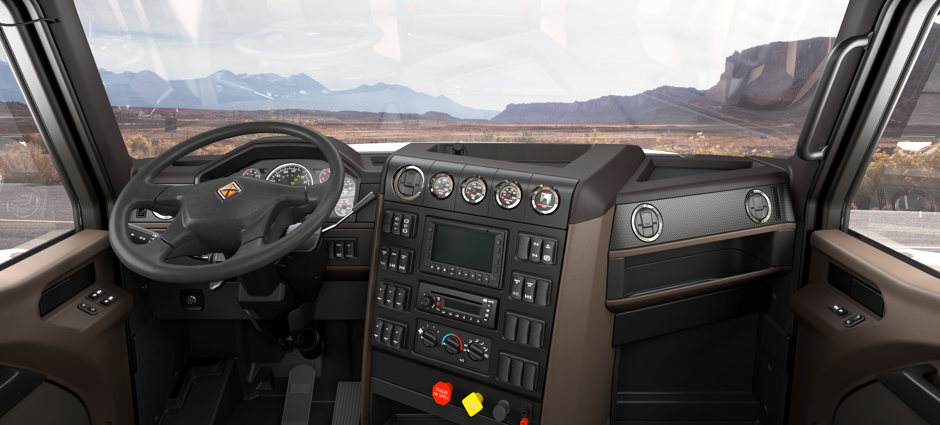

New DriverFirst cab suspension produces a supremely comfortable and quiet ride

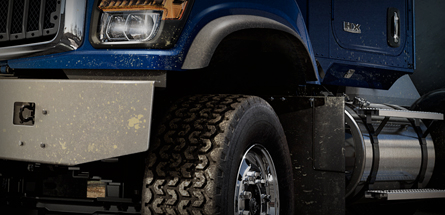

A 40 degree wheel cut with 425 tires, dual steering gears and advanced ABS systems allow for sharp turns, traction and movement control.

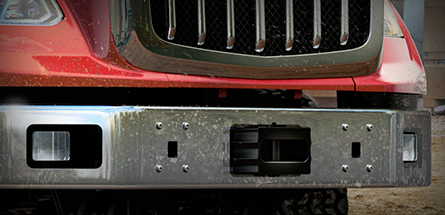

Available 150,000lb capacity center tow pin for extreme recovery scenarios.

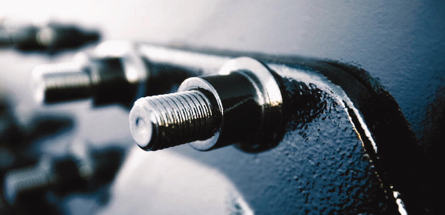

Huck-bolted frame and cross members on chassis minimize movement and wear.

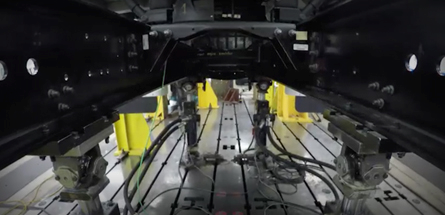

Industry-leading lightweight 12.5 x 0.5 single rail option offers 3.5 million RBM rating.
