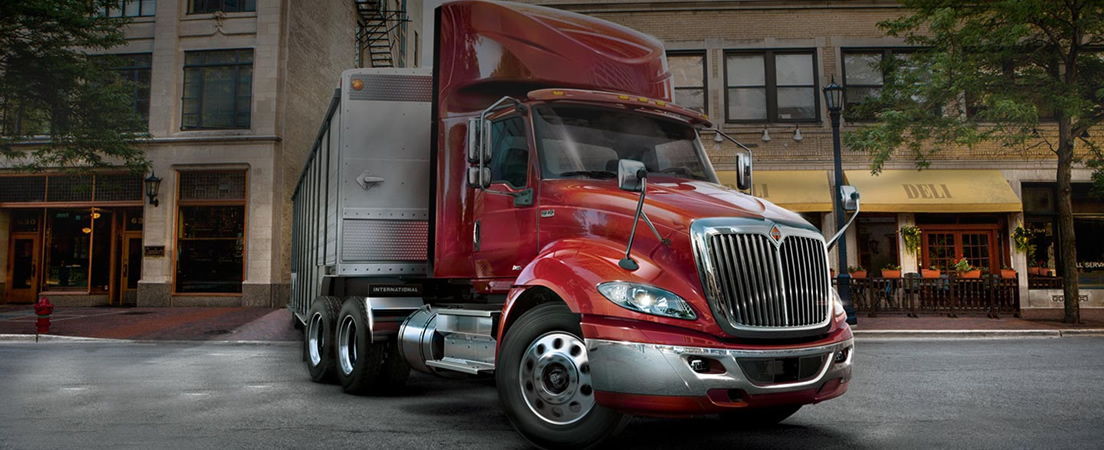

The International RH
The most agile regional haul truck to hit the streets.
The RH Series was designed with safety and visibility in mind. By reshaping our doors and repositioning our cab mirrors, we’ve improved the driver’s field of view, reducing vision-related accidents. Forward visibility is among the industry best at as little as 21 feet. With a wheel cut of 50 degrees and a curb turning radius of 27 feet 10 inches, the RH is made to provide optimal maneuverability. Click Here to Download the Brochure Learn more about the RH at www.internationaltrucks.comA RH SERIES TRUCK FOR EVERY STREET YOU TRAVEL
RH SERIES APPLICATIONS

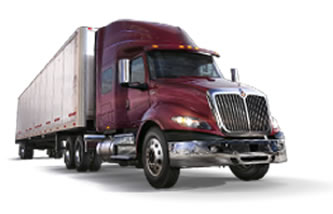

REGIONAL HAUL
When short hauls are your bread and butter, time is your priority. So to keep you on schedule and profitable, the RH Series’ delivers increased fuel economy, meaning less time at the pump and more time on the road.

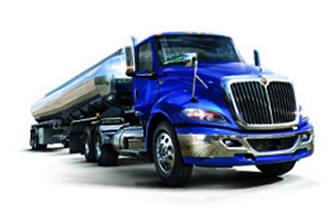

TANKER
You may not cover the most ground but you do handle the biggest loads. The RH Series was built to maximize load capacity without sacrificing maneuverability, durability or fuel efficiency.

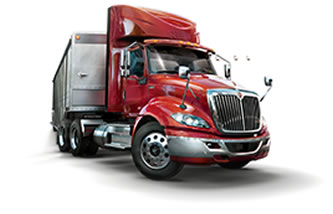

LOCAL DELIVERY
The RH Series maneuverability and visibility make easy work of even the trickiest deliveries. And with lightweight options available, you can maximize your payload along with your profitability.THE ONLY ENGINE FOR THE JOB
INTRODUCING THE INTERNATIONAL® A26 BIG BORE ENGINE.
| Engine Type | Diesel, 4-Cycle |
| Configuration | Inline 6-Cylinder |
| Displacement | 12.4 L (758 cu. in.) |
| Bore & Stroke | 4.96 in. & 6.54 in. (126 mm & 166 mm) |
| Compression Ratio | 18.5:1 |
| Aspiration | Variable Geometry Turbocharger with Charge Air Cooler |
| Combustion System | 2500 bar High Pressure Common Rail |
| Engine Lubrication | 42 Quarts (40 L) |
| Total Engine Weight | 2,299 lbs. (1043 kg) |
| Valves | 4 Valves Per Cylinder, Single Overhead Camshaft |
| B10 Design Style | 1,200,000 mi (1,931,000) |
