Landoll Bottom Dump Trailers
The name of the game in material hauling is payload and payload delivery. Landoll’s Ultralite bottom dump trailers are hard to beat. These trailers have been designed to minimize weight and maximize payload. With low empty weights starting at 11,350 lbs. and load capacities of up to 24 tons, the Landoll bottom dump series are a sure investment for your hauling needs.
Bottom Dump Model 302C-B
Tandem Axle Steel Bottom Dump
The Landoll Model 302C tandem axle bottom dump features a large 21 cubic yd. capacity. The single hopper trailer is equipped with single air-operated windrow style gates, full air spring brakes, bolt on full rear fenders with mud flaps, auto slack adjusters and manual gate control valve.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 302C-B | 21 Cu. Yd. | Single Gates | 40′ Single Gates | 2 | (8) 11R 22.5 Radial LRG |
Bottom Dump Model 302D-B
Minimize Weight – Maximize Payload

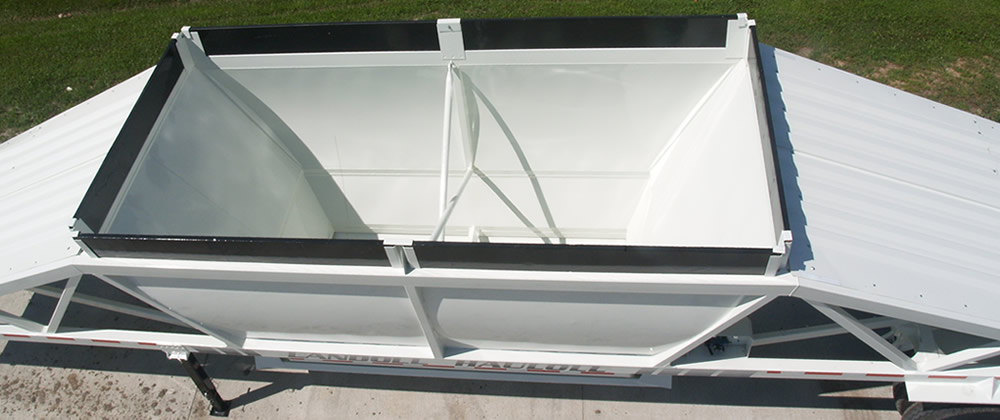

With an empty weight of just 11,050 lbs. and a load capacity of up to 24 tons, the 302D Ultralite bottom dumps are a profitable investment. A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer. The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets. Rocking king pin bolsters that absorb and spread out load torque. Spring suspension is standard but an optional neway air ride suspension is available.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 302D-B-35 | 21 Cu. Yds. | Single Gate | 35′ | 2 | (8) 11.00 22.5 LRF Tubeless Bias |
| 302D-B-39 | 21 Cu. Yds. | Single Gate | 39′ | 2 | (8) 11.00 22.5 LRF Tubeless Bias |
| 302D-B-43 | 21 Cu. Yds. | Single Gate | 43′ | 2 | (8) 11.00 22.5 LRF Tubeless Bias |
Bottom Dump Model 305D-B
Minimize Weight – Maximize Payload
With an empty weight of just 12,945 lbs. and a load capacity of up to 24 tons, the 305D Ultralite bottom dumps are a profitable investment. A rounded barrel-shape hopper design providing inherent strength eliminates the need for all but one stiffener making for a lighter weight trailer. The 21 cubic yard hopper capacity can be increased to 24 cubic yards with the additional sideboards and brackets. The 305D is a triple axle bottom dump. Rocking king pin bolsters that absorb and spread out load torque. Spring suspension is standard but an optional neway air ride suspension is available.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 305D-B-35 | 21 Cu. Yds. | Single Gate | 35′ | 3 | (12) 11.00 22.5 LRF Tubeless Bias |
| 305D-B-39’1 | 21 Cu. Yds. | Single Gate | 39’1 | 3 | (12) 11.00 22.5 LRF Tubeless Bias |
| 305D-B-43 | 21 Cu. Yds. | Single Gate | 43′ | 3 | (12) 11.00 22.5 LRF Tubeless Bias |
Bottom Dump Model 312D-B
Additional Payload for 312D Bottom Dump
With the addition of a Model 313D single axle trailer to an existing 312D trailer, an additional 12 cubic yards of payload will be added to the load. Some states, mostly in the Western United States allow this additional trailer to be pulled behind the bottom dump.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 312D-B | 12 Cu. Yd. | Single Gate | 20’5 | 1 | (4) 11R 22.5 Radial LRG |
Bottom Dump Model 313D-B
More Payload Choices
With the addition of a Model 313D single axle trailer to an existing 312D trailer, an additional 12 cubic yards of payload will be added to the load. Some states, mostly in the Western United States allow this additional trailer to be pulled behind the bottom dump.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 313D-B | 12 Cu. Yds. | Single | 20’4 | 2 | (8) 11R 22.5 Radial LRG |
Bottom Dump Model 314D-B
More Payload Choices
With the addition of a Model 313D single axle trailer to an existing 312D trailer, an additional 12 cubic yards of payload will be added to the load. Some states, mostly in the Western United States allow this additional trailer to be pulled behind the bottom dump.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 314D-B | 15 Cu. Yd. | Single Gate | 26’2″ | 4 | (16) 11.00 22.5 LRF Tubeless Bias |
Bottom Dump Model 402B-B
Tandem Converter Dolly
When you need to convert your semi-trailers to trains then just choose the Landoll’s 402B-B Converter Dolly. This tandem axle dolly supports the heaviest payloads with its durable construction and delivers a smooth ride. You choose one of thirteen hitch lengths to create the axle spacing, wheel base and weight distribution that works best in your region.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 402B-B Dolly | 40,000 Lbs. | 2 | (8) 11R 22.5 Radial LRG |
